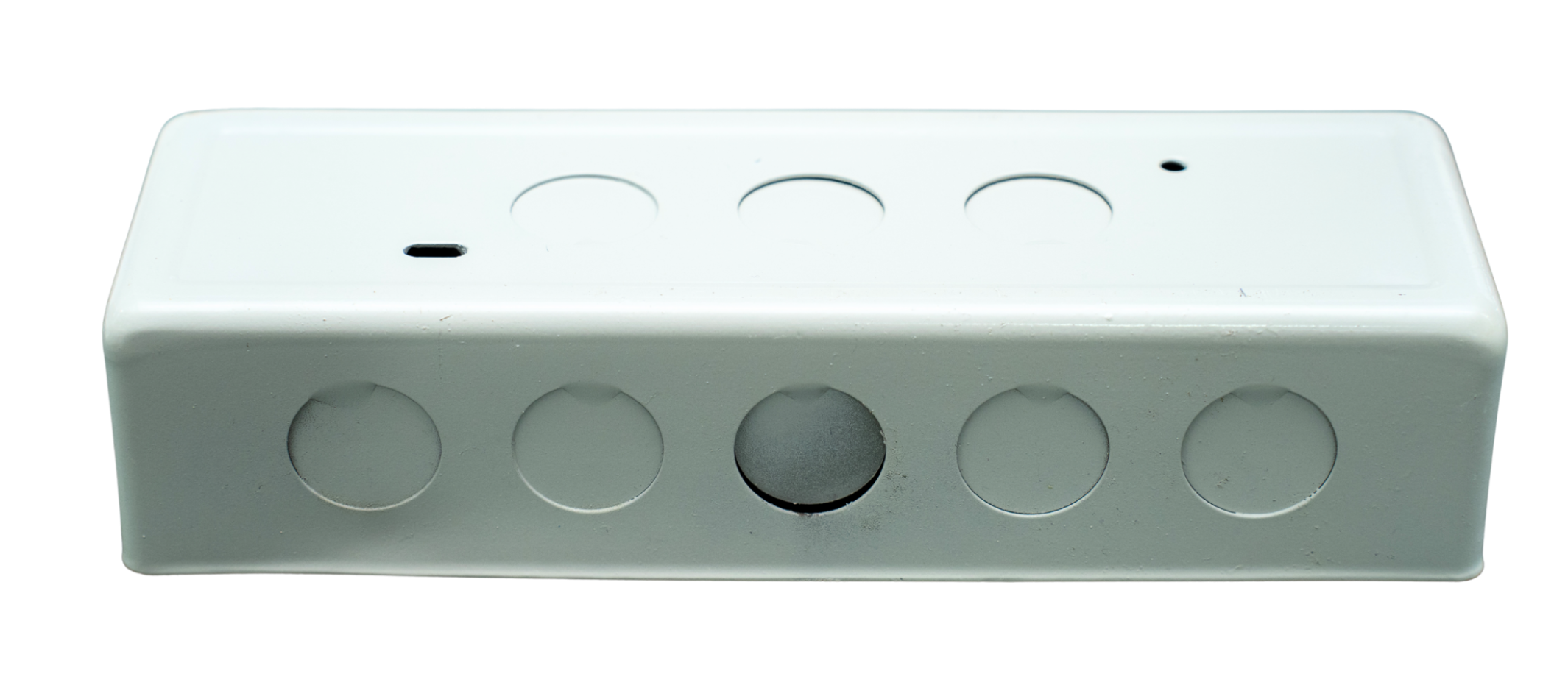

Modular Box
Our Modular Box is a powder-coated electrical enclosure used for flush mounting in walls, built for installing modular switches, sockets, regulators and other electrical accessories safely. Unlike conventional welded boxes, our boxes are manufactured using a single-sheet deep draw process — formed from one continuous sheet with no welding and no corner locking — resulting in a seamless, leak-proof, structurally stronger body with a smooth finish inside and out.
Features:
- Fire Resistant, Earthing Screw Provided and Flush Mounting Support
- Powder Coated finish (not raw iron) — better rust resistance, corrosion protection and a clean paintable/paint-matched surface.
- Single Sheet Deep Draw construction — the entire body is drawn from one sheet of metal, unlike standard boxes locked/welded together from separate panels.
- No Welding — eliminates weld-joint weak points, burn marks and inconsistent seams common in welded GI boxes.
- No Corner Locking — a true unibody shell with no visible seams, hooks, or locking tabs at the corners.
- Smoother edges and consistent wall thickness throughout, since the box is formed rather than assembled.
Construction Specifications :
| SPECIFICATION | OUR PRODUCT |
|---|---|
| Material | CRCA Steel Sheet, Powder Coated |
| Finish | Electrostatic Powder Coating (Rust & Corrosion Resistant) |
| Construction | Single Sheet Deep Draw – Seamless, One-Piece Body |
| Welding | None – Welding-Free Construction, No Weak Joints |
| Corner Locking | Not Applicable – Unibody Drawn Construction |
| Earthing Provision | Earthing Screw Provided |
| Mounting | Flush Mounting Support |
| Standard Depth | 45 MM (Standard) / 50 MM (Deep Box, on larger modules) |
Modular Box Size Chart
| Module Size | APPROX SIZE (INCHES) | SIZE (MM) | COMMON USE |
|---|---|---|---|
| 1M | 3 x 3 | 75 x 75 x 45 | 1 Module Switch |
| 2M | 3 x 3 | 75 x 75 x 45 | 1 Switch + 1 Socket |
| 3M | 3 x 4 | 75 x 100 x 45 | Small Combinations |
| 4M | 3 x 5 | 75 x 125 x 45 | Bedroom Boards |
| 6M | 3 x 8 | 75 x 200 x 45 | Fan + Switches + Socket |
| 8M (Horizontal) | 3 x 9 | 75 x 225 x 45 | Kitchen & Medium Rooms |
| 8M (Vertical) | 5 x 5 | 125 x 125 x 45 | Vertical Switch Boards |
| 12M | 6 x 8 | 150 x 200 x 50 | Drawing Room Boards |
| 16M | 9 x 8 | 225 x 200 x 50 | Large Electrical Setup |
| 18M | 10 x 8 | 250 x 200 x 50 | Heavy Modular Boards |
